User-Facing Backend

Aggregation Pipeline​

Example​

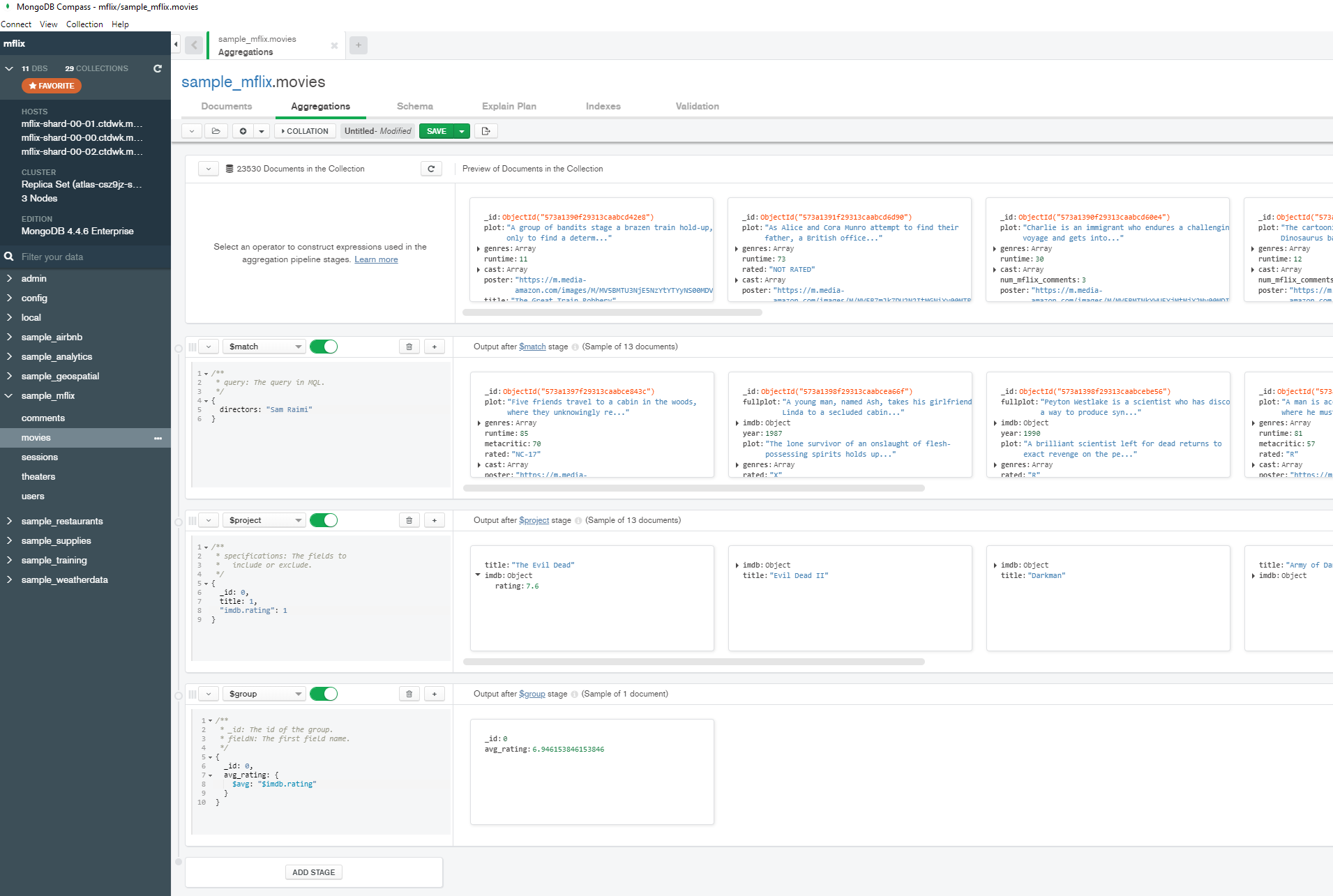

Aggregation Pipeline

Example of a similar (but not the same) pipeline in C#​

public void CountMovies()
        {
            // This stage finds all movies that have a specific director
            var matchStage = new BsonDocument("$match",
                new BsonDocument("directors", "Rob Reiner"));


            // This stage sorts the results by the number of reviews,
            // in descending order
            var sortStage = new BsonDocument("$sort",
                new BsonDocument("tomatoes.viewer.numReviews", -1));

            // This stage generates the projection we want
            var projectionStage = new BsonDocument("$project",
                new BsonDocument
                    {
                        { "_id", 0 },
                        { "Movie Title", "$title" },
                        { "Year", "$year" },
                        { "Average User Rating", "$tomatoes.viewer.rating" }
                    });

            /* We now put the stages together in a pipeline. Note that a
             * pipeline definition requires us to specify the input and output
             * types. In this case, the input is of type Movie, but because
             * we are using a Projection with custom fields, our output is
             * a generic BsonDocument object. To be really cool, we could
             * create a mapping class for the output type, which is what we've
             * done for you in the MFlix application.
             */

            var pipeline = PipelineDefinition<Movie, BsonDocument>
                .Create(new BsonDocument[] {
                    matchStage,
                    sortStage,
                    projectionStage
                });


            var result = _moviesCollection.Aggregate(pipeline).ToList();
            /* Note: we're making a synchronous Aggregate() call.
             * If you want a challenge, change the line above to make an
             * asynchronous call (hint: you'll need to make 2 changes),
             * and then confirm the unit test still passes.
             */

            Assert.AreEqual(14, result.Count);
            var firstMovie = result[0];
            Assert.AreEqual("The Princess Bride", firstMovie.GetValue("Movie Title").AsString);
            Assert.AreEqual(1987, firstMovie.GetValue("Year").AsInt32);
            Assert.AreEqual(4.0, firstMovie.GetValue("Average User Rating").AsDouble);

            /* We specifically excluded the "Id" field in the projection stage
             * that we built in the code above, so let's make sure that field
             * wasn't included in the resulting BsonDocument. We expect the call
             * to GetValue() to throw a KeyNotFoundException exception if the
             * field doesn't exist.
             */

            Assert.Throws<KeyNotFoundException>(()=> firstMovie.GetValue("Id"));
        }
  • Faceted search, or faceted navigation, is a way of browsing and searching for items in a set of data by applying filters on various properties (facets) of the items in the collection
  • It is increasingly seen as an important part of the UI for many search platforms, and indeed nowadays is pretty much expected in places such as e-commerce websites
  • It complements more free-form keyword search by facilitating exploration and discovery and is therefore useful when a user may not know the specific keywords they wish to search on.

Some core functionality that a faceted search feature should provide might include:

  • finding the items that match a particular value of a certain facet (e.g. colour:blue)
  • finding the items in the intersection of multiple facet values (e.g. colour:blue AND size:medium)
  • finding the items in the union of multiple facet values (e.g. colour:blue OR colour:red OR size:large)
  • for each possible facet filter combination, display to the user the possible facet values on which it is possible to filter further ("drill down")
  • for each facet value on which it is possible to drill down, display to the user the count of items matching that filter.

For more info see the MongoDB Blog.

MFlix Functionality​

Faceted Search is a way of narrowing down search results by adding search parameters. For example let's say MFlix allows users to filter movies by a rating from 1 to 10, but Kate Winslet has only acted in movies that have a rating of 6 or higher.

If we didn't specify any other search parameters, MFlix would allow us to choose a rating between 1 and 10. But if we first search for "Kate Winslet", MFlix would only let us choose a rating between 6 and 10, because none of the movie documents in the result set have a rating below 6.

To use faceted searches, the application must use the $facet pipeline stage of the Aggregation Framework.

Note: To see how facets work see the Aggregation Framework Course.

Basic Writes​

To add something new to the database we can use the methods InsertOneAsync and InsertManyAsync.

Example​

public async Task CreateMovieAsync()
{

    var newTheater = new Theater(27777,
                    "4 Privet Drive",
                    "Little Whinging",
                    "LA",
                    "343434");

    await _theatersCollection.InsertOneAsync(newTheater);


    // Add many
    var theater1 = new Theater(27017, "1 Foo Street", "Dingledongle", "DE", "45678");
    var theater2 = new Theater(27018, "234 Bar Ave.", "Wishywashy", "WY", "87654");
    var theater3 = new Theater(27019, "75 Birthday Road", "Viejo Amigo", "CA", "99887");

    await _theatersCollection.InsertManyAsync(
        new List<Theater>()
        {
            theater1, theater2, theater3
        }
    );
}

Basic Updates​

To update something in the database we can use the methods UpdateOneAsync, UpdateManyAsync and FindOneAndUpdateAsync.

Examples​

Updating one document:

// not type safe
var updateResult = _theatersCollection.UpdateOne(filter,
    new BsonDocument("$set",
        new BsonDocument("location.address.street1", "123 Main St."))
    );

// With the builder
_theatersCollection.UpdateOne(filter,
    Builders<Theater>.Update.Set(t => t.Location.Address.Street1,
        "123 Main St.")
    );

// if you want to do something with the updated document use FindOneAndUpdateAsync
var updatedDoc = await _theatersCollection.FindOneAndUpdateAsync<Theater>(
                filter,
                Builders<Theater>.Update.Set(
                    t => t.Location.Address.Street1,
                    "123 Main St.")
                );

Updating many documents:

var update = Builders<Theater>
                .Update.Set(t => t.Location.Address.City, "Bloomington");

// And then we run UpdateManyAsync:
var result = await _theatersCollection.UpdateManyAsync(
    filter,
    update
    );

Write Concerns​

  • Write concerns are important when there are more than one data source
  • An Atlas replica set is an example where write concerns can be important

writeConcern: { w: 1 }​

  • Only requests an acknowledgement that one node applied the write
  • This is the default writeConcern in MongoDB

writeConcern: { w: majority }​

  • Requests acknowledgement that a majority of nodes in the replica set applied the write
  • Takes longer than w: 1
  • Is more durable than w: 1
    • Useful for ensuring vital writes are majority-committed
    • e.g. user registration

writeConcern: { w: 0 }​

  • Does not request an acknowledgement that any nodes applied the write
    • "Fire and forget"
    • acknowledgement can still indicate network errors or socket exceptions
  • Fastest writeConcern level
  • Least durable writeConcern

Example​

await _usersCollection.WithWriteConcern(WriteConcern.WMajority).InsertOneAsync(user, cancellationToken: cancellationToken);

Joins​

  • Join two collections of data
    • Movies and comments
  • Use new expressive $lookup
    • allows us to apply aggregation pipelines to data - before the data is joined
  • Build aggregation in Compass, and then export to language

Join comments to movies (this pipeline is executed upon the movies collection):

// $match stage
{
  year: { "$gte": 1980, "$lt": 1990 }
}

// $lookup stage
// from: collection we are joining from
{
  from: "comments",
  // pipeline has access to fields inside comments collection
  // but not to fields inside the movies collection
  // if we need fields from movies we need to declare them in let
  // this makes _id available in the pipeline as "id"
  // this variable is referred to with the "$$" signs (movies collection)
  // one "$" sign refers to the comments collection!
  let: { "id": "$_id" },
  pipeline: [
    {
      "$match":
      // matches the comment "movie_id" field to the movie "id" field
      { "$expr": { "$eq": [ "$movie_id", "$$id" ]} }
    }
  ],
  // each movie has a new field movie_comments with the comments as array
  as: "movie_comments"
}

// if we only care about how many comments there are, we can add a stage to our pipeline
{
  from: "comments",
  let: { "id": "$_id" },
  pipeline: [
    {
      "$match":
      { "$expr": { "$eq": [ "$movie_id", "$$id" ]} }
    },
    {
      "$count": "count"
    }
  ],
  as: "movie_comments"
}

We can also export the pipeline from Compass to C# code:

new BsonArray
{
    new BsonDocument("$match",
    new BsonDocument("year",
    new BsonDocument
            {
                { "$gte", 1980 },
                { "$lt", 1990 }
            })),
    new BsonDocument("$lookup",
    new BsonDocument
        {
            { "from", "comments" },
            { "let",
    new BsonDocument("id", "$_id") },
            { "pipeline",
    new BsonArray
            {
                new BsonDocument("$match",
                new BsonDocument("$expr",
                new BsonDocument("$eq",
                new BsonArray
                            {
                                "$movie_id",
                                "$$id"
                            })))
            } },
            { "as", "movie_comments" }
        })
}

Better approach:

/* Approach that uses several helpful methods in the driver:
    * Aggregate(), Match(), and Lookup(), each of which is represented
    * in the code above as MQL. The Lookup() method is a bit complex;
    * here is an explanation of each of the parameters:
    *
    *  - The collection from which we want to lookup the values
    *      (in this case, the Comments collection)
    *  - The "key" in the Movies collection that will match a key in
    *      the Comments collection.
    *  - The "key" in the Comments collection that matches the previous
    *      parameter. In both cases, it's the _id of each Movie we match
    *      in the Match state.
    *  - The property in which we want to put the lookup results. We
    *      have already defined a Comments property on the Movie object
    *      for just this purpose, so we specify it here.
    *
    */
var movies = _moviesCollection
    .Aggregate()  // begins a fluent aggregation
    .Match(m => (int)m.Year < 1990 && (int)m.Year >= 1980)
    .Lookup(
        _commentsCollection,
        m => m.Id,
        c => c.MovieId,
        (Movie m)=>m.Comments
        )
    .ToList();

var firstMovie = movies.First();

Basic Deletes​

// delete one document
var filter = Builders<Theater>.Filter.Eq(t => t.TheaterId, 27017);
var result = await _theatersCollection.DeleteOneAsync(filter);

// delete one document but return it
filter = Builders<Theater>.Filter.Eq(t => t.TheaterId, 27018);
var deletedDoc = await _theatersCollection.FindOneAndDeleteAsync(filter);

// delete many
var filter = Builders<Theater>.Filter.Eq(t => t.Location.Address.City, "Movieville");
var result = await _theatersCollection.DeleteManyAsync(filter);
