Resolvers

Resolvers are the main building blocks when it comes to fetching data. Every field in our GraphQL schema is backed by such a resolver function, responsible for returning the field's value. Since a resolver is just a function, we can use it to retrieve data from a database, a REST service, or any other data source as needed.

Resolver Tree

A resolver tree is a projection of a GraphQL operation that is prepared for execution. For better understanding, let's imagine we have a simple GraphQL query like the following, where we select some fields of the currently logged-in user.

query {
  me {
    name
    company {
      id
      name
    }
  }
}

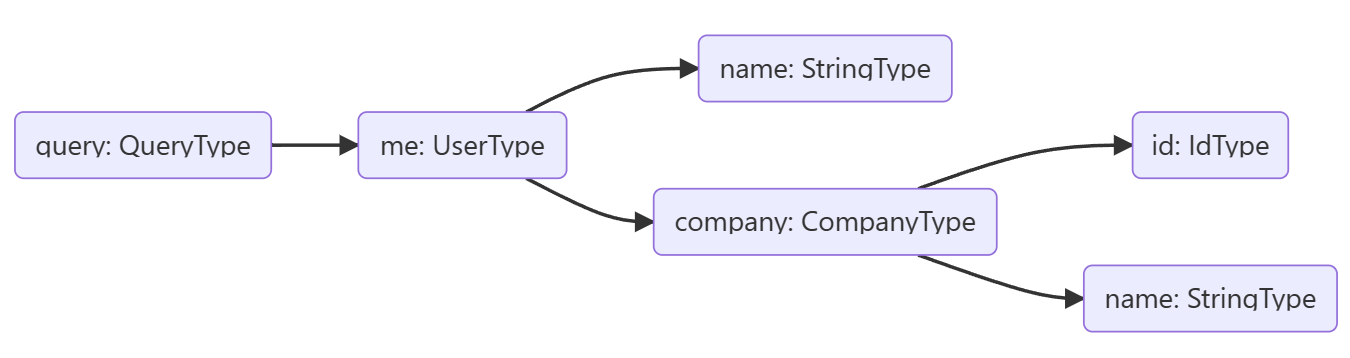

In Hot Chocolate, this query results in the following resolver tree.

This tree will be traversed by the execution engine, starting with one or more root resolvers. In the above example the me field represents the only root resolver.

Field resolvers that are sub-selections of a field, can only be executed after a value has been resolved for their parent field. In the case of the above example this means that the name and company resolvers can only run, after the me resolver has finished.

danger

Resolvers of field sub-selections can and will be executed in parallel. Because of this it is important that resolvers, with the exception of top level mutation field resolvers, do not contain side-effects, since their execution order may vary.

The execution of a request finishes, once each resolver of the selected fields has produced a result. This is of course an oversimplification that differs from the actual implementation.

Defining a Resolver

Resolvers can be defined in a way that should feel very familiar to C# developers, especially in the Annotation-based approach.

Properties

Hot Chocolate automatically converts properties with a public get accessor to a resolver that simply returns its value.

Regular Resolver

A regular resolver is just a simple method, which returns a value.

public class Query
{
    public string Foo() => "Bar";
}

public class Startup
{
    public void ConfigureServices(IServiceCollection services)
    {
        services
            .AddGraphQLServer()
            .AddQueryType<Query>();
    }
}

Async Resolver

Most data fetching operations, like calling a service or communicating with a database, will be asynchronous. In Hot Chocolate, we can simply mark our resolver methods and delegates as async or return a Task<T> and it becomes an async-capable resolver. We can also add a CancellationToken argument to our resolver. Hot Chocolate will automatically cancel this token if the request has been aborted.

public class Query
{
    public async Task<string> Foo(CancellationToken ct)
    {
        // Omitted code for brevity
    }
}

When using a delegate resolver, the CancellationToken is passed as second argument to the delegate.

descriptor
    .Field("foo")
    .Resolve((context, ct) =>
    {
        // Omitted code for brevity
    });

ResolveWith

Thus far we have looked at two ways to specify resolvers in Code-first:

• Add new methods to the CLR type, e.g. the T type of ObjectType<T>
• Add new fields to the schema type in the form of delegates

descriptor.Field("foo").Resolve(context => )

But there's a third way. We can describe our field using the descriptor, but instead of a resolver delegate, we can point to a method on another class, responsible for resolving this field.

public class FooResolvers
{
    public string GetFoo(string arg, [Service] FooService service)
    {
        // Omitted code for brevity
    }
}

public class QueryType : ObjectType
{
    protected override void Configure(IObjectTypeDescriptor descriptor)
    {
        descriptor
            .Field("foo")
            .Argument("arg", a => a.Type<NonNullType<StringType>>())
            .ResolveWith<FooResolvers>(r => r.GetFoo(default, default));
    }
}

Arguments

We can access arguments we defined for our resolver like regular arguments of a function. There are also specific arguments that will be automatically populated by Hot Chocolate when the resolver is executed. These include Dependency injection services, DataLoaders, state, or even context like a parent value.

Accessing Parent Values

The resolver of each field on a type has access to the value that was resolved for said type.

Let's look at an example. We have the following schema:

type Query {
  me: User!;
}

type User {
  id: ID!;
  friends: [User!]!;
}

The User schema type is represented by an User CLR type. The id field is an actual property on this CLR type:

public class User
{
    public string Id { get; set; }
}

friends on the other hand is a resolver i.e. method we defined. It depends on the user's Id property to compute its result. From the point of view of this friends resolver, the User CLR type is its parent. We can access this so called parent value like the following. In the Annotation-based approach we can just access the properties using the this keyword:

public class User
{
    public string Id { get; set; }

    public List<User> GetFriends()
    {
        var currentUserId = this.Id;

        // Omitted code for brevity
    }
}

There's also a [Parent] attribute that injects the parent into the resolver:

public class User
{
    public string Id { get; set; }

    public List<User> GetFriends([Parent] User parent)
    {
        // Omitted code for brevity
    }
}

Automatic Registration

We can automatically register all resolvers that are annotated with QueryType, MutationType and SubscriptionType. For this we use the package HotChocolate.Types.Analyzers. It is a source generator and can be added as a private assset:

.csproj

<PackageReference Include="HotChocolate.Types.Analyzers" Version="x.x.x">
    <PrivateAssets>all</PrivateAssets>
    <IncludeAssets>runtime; build; native; contentfiles; analyzers; buildtransitive</IncludeAssets>
</PackageReference>

Once the package is installed, we only need to add the types by adding the automatically generated AddTypes method:

Startup.cs

builder.Services
    .AddGraphQLServer()
    .AddTypes();

If we now have a type that is annotated with QueryType for example, it will be automatically added to the schema. For instance:

[QueryType]
public sealed class UserQueries
{
    public async Task<User> GetUserAsync(AssetContext context)
    {
        // Omitted code for brevity
    }
}

will lead to the following code being automatically generated:

using System;
using HotChocolate.Execution.Configuration;

namespace Microsoft.Extensions.DependencyInjection
{
    public static class AssetTypesRequestExecutorBuilderExtensions
    {
        public static IRequestExecutorBuilder AddTypes(this IRequestExecutorBuilder builder)
        {
            builder.AddTypeExtension<Demo.Types.Account.UserQueries>();
            return builder;
        }
    }
}

It registers the necessary types and adds them to the schema. This way we can easily add new types without having to change the Startup.cs file.
