Elastic Compute Cloud (EC2)

EC2 is the Infrastructure as a Service offering of AWS. It mainly consists in the capability of:

  • Renting virtual machines (EC2)
  • Storing data on virtual drives (EBS)
  • Distributing load across machines (ELB)
  • Scaling the services using an auto-scaling group (ASG)

EC2 sizing & configuration options​

  • Operating System
  • CPU
  • RAM
  • Storage
    • Network attached (EBS & EFS)
    • Hardware (EC2 Instance Store)
  • Network card
  • Firewall rules
  • Bootstrap script (configure at first launch): EC2 User Data

EC2 User Data​

  • It is possible to bootstrap our instances using an EC2 User data script
  • Bootstrapping means launching commands when a machine starts
  • That script is only run once at the instance first start
  • EC2 user data is used to automate boot tasks such as:
    • Installing updates
    • Installing software
    • Downloading common files from the internet
  • The EC2 User Data Script runs with the root user

EC2 Instance Types​

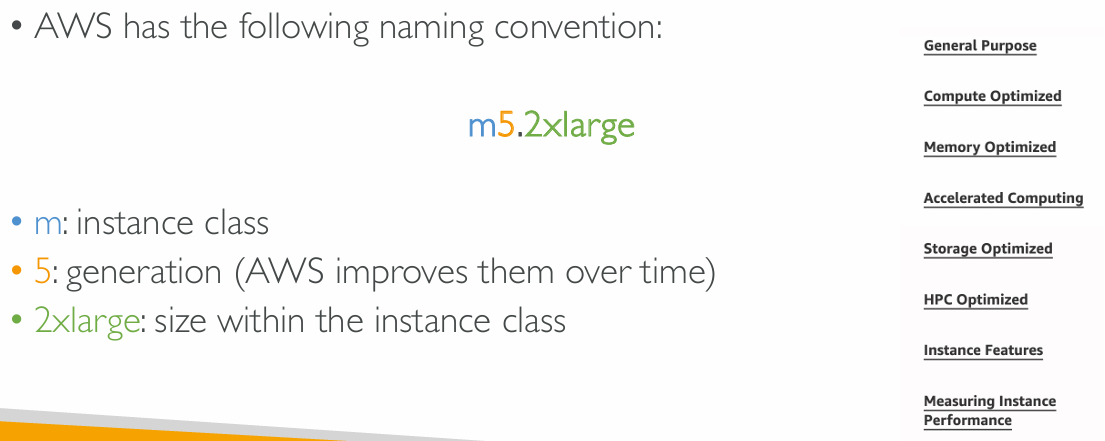

ec2-instance-types

  • General Purpose
    • Great for a diversity of workloads such as web servers or code repositories
    • Balance between: Compute, Memory, Networking
  • Compute Optimized
    • Great for compute-intensive tasks that require high performance processors
  • Memory Optimized
    • Fast performance for workloads that process large data sets in memory
  • Storage Optimized
    • Great for storage-intensive tasks that require high, sequential read and write access to large data sets on local storage

Security Groups​

  • Security Groups are the fundamental of network security in AWS (acting as a firewall)
  • They regulate:
    • Access to Ports
    • Authorized IP ranges – IPv4 and IPv6
    • Control of inbound/outbound network traffic
  • Security groups only contain allow rules
    • All inbound traffic is blocked by default
    • All outbound traffic is authorized by default
  • Security groups rules can reference by IP or by security group

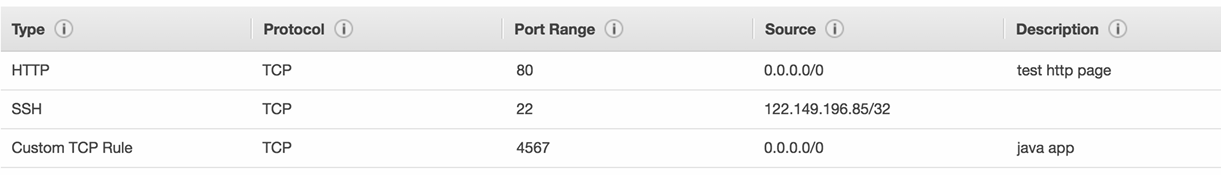

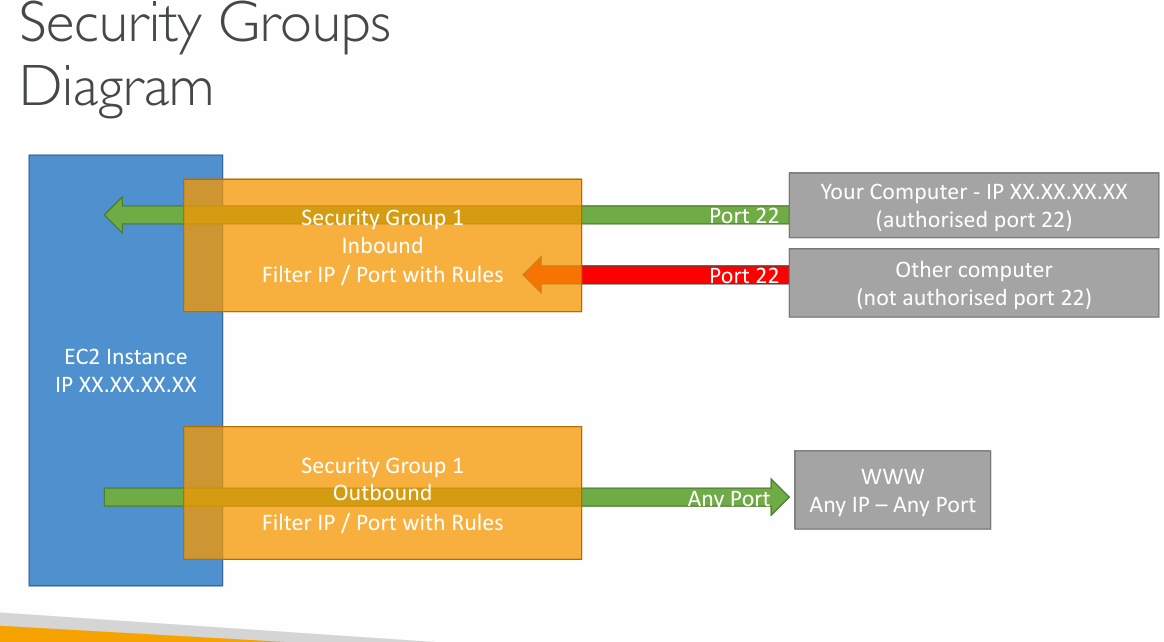

security-group-example-1 security-group-example-2

Security Groups can be:

  • Can be attached to multiple instances
  • Locked down to a region / VPC combination
  • Does live “outside” the EC2 – if traffic is blocked the EC2 instance won’t see it
  • It’s good to maintain one separate security group for SSH access
  • If your application is not accessible (time out), then it’s a security group issue
  • If your application gives a “connection refused“ error, then it’s an application error or it’s not launched

Referencing other security groups - Diagram​

referencing-security-groups

Classic Ports to know​

  • 21 - FTP
  • 22 - SSH/SFTP
  • 80 - HTTP
  • 443 - HTTPS
  • 3389 RDP (Remote Desktop)

EC2 Instances Purchasing Options​

  • On-Demand Instances – short workload, predictable pricing, pay by second
  • Reserved (1 & 3 years)
    • Reserved Instances – long workloads
    • Convertible Reserved Instances – long workloads with flexible instances
  • Savings Plans (1 & 3 years) –commitment to an amount of usage, long workload
  • Spot Instances – short workloads, cheap, can lose instances (less reliable)
  • Dedicated Hosts – book an entire physical server, control instance placement
  • Dedicated Instances – no other customers will share your hardware
  • Capacity Reservations – reserve capacity in a specific AZ for any duration

EC2 On Demand​

  • Pay for what you use:
    • Linux or Windows - billing per second, after the first minute
    • All other operating systems - billing per hour
  • Has the highest cost but no upfront payment
  • Recommended for short-term and un-interrupted workloads, where you can't predict how the application will behave

EC2 Reserved Instances​

  • Up to 72% discount compared to On-demand
  • You reserve a specific instance attributes (Instance Type, Region, Tenancy, OS)
    • Reservation Period – 1 year (+discount) or 3 years (+++discount)
    • Payment Options – No Upfront (+), Partial Upfront (++), All Upfront (+++)
    • Reserved Instance’s Scope – Regional or Zonal (reserve capacity in an AZ)
  • Recommended for steady-state usage applications (think database)
  • You can buy and sell in the Reserved Instance Marketplace
  • Convertible Reserved Instance
    • Can change the EC2 instance type, instance family, OS, scope and tenancy
    • Up to 66% discount

EC2 Savings Plans​

  • Get a discount based on long-term usage (up to 72% - same as RIs)

  • Commit to a certain type of usage ($10/hour for 1 or 3 years)

  • Usage beyond EC2 Savings Plans is billed at the On-Demand price

  • Locked to a specific instance family & AWS region (e.g., M5 in us-east-1)

  • Flexible across:

    • Instance Size (e.g., m5.xlarge, m5.2xlarge)
    • OS (e.g., Linux, Windows)
    • Tenancy (Host, Dedicated, Default)

EC2 Spot Instances​

  • Can get a discount of up to 90% compared to On-demand
  • Instances that you can “lose” at any point of time if your max price is less than the current spot price
  • The MOST cost-efficient instances in AWS
  • Useful for workloads that are resilient to failure
    • Batch jobs
    • Data analysis
    • Image processing
    • Any distributed workloads
    • Workloads with a flexible start and end time
  • Not suitable for critical jobs or databases

EC2 Dedicated Hosts​

  • A physical server with EC2 instance capacity fully dedicated to your use
  • Allows you address compliance requirements and use your existing server bound software licenses (per-socket, per-core, per—VM software licenses)
  • Purchasing Options:
    • On-demand – pay per second for active Dedicated Host
    • Reserved - 1 or 3 years (No Upfront, Partial Upfront, All Upfront)
  • The most expensive option
    • Useful for software that have complicated licensing model (BYOL – Bring Your Own License)
    • Or for companies that have strong regulatory or compliance needs

EC2 Dedicated Instances​

  • Instances run on hardware that’s dedicated to you
  • May share hardware with other instances in same account
  • No control over instance placement (can move hardware after Stop / Start)

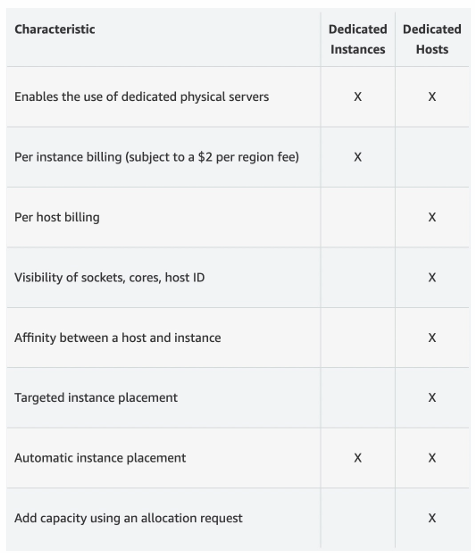

dedicated-instances

EC2 Capacity Reservations​

  • Reserve On-Demand instances capacity in a specific AZ for any duration
  • No time commitment (create/cancel anytime), no billing discounts
  • You’re charged at On-Demand rate whether you run instances or not
  • Suitable for short-term, uninterrupted workloads that needs to be in a specific AZ
    • Combine with Regional Reserved Instances and Savings Plans to benefit from billing discounts

AWS charges for IPv4 addresses​

  • Starting February 1st 2024, there’s a charge for all Public IPv4 created in your account
  • $0.005 per hour of Public IPv4 (~ $3.6 per month)
  • RDS and Load Balancers have one public ipv4 per AZ

Amazon EC2 – Instance Storage​

EBS Volumes​

  • An EBS (Elastic Block Store) Volume is a network drive (i.e. not a physical drive) you can attach to your instances while they run
    • It uses the network to communicate the instance, which means there might be a bit of latency
    • It can be detached from an EC2 instance and attached to another one quickly
  • It allows your instances to persist data, even after their termination
  • They can only be mounted to one instance at a time (at the CCP level)
  • It’s locked to an Availability Zone (AZ)
    • An EBS Volume in us-east-1a cannot be attached to us-east-1b
    • To move a volume across, you first need to snapshot it
  • Have a provisioned capacity (size in GBs, and IOPS)
    • You can increase the capacity of the drive over time

EBS Volume - Example​

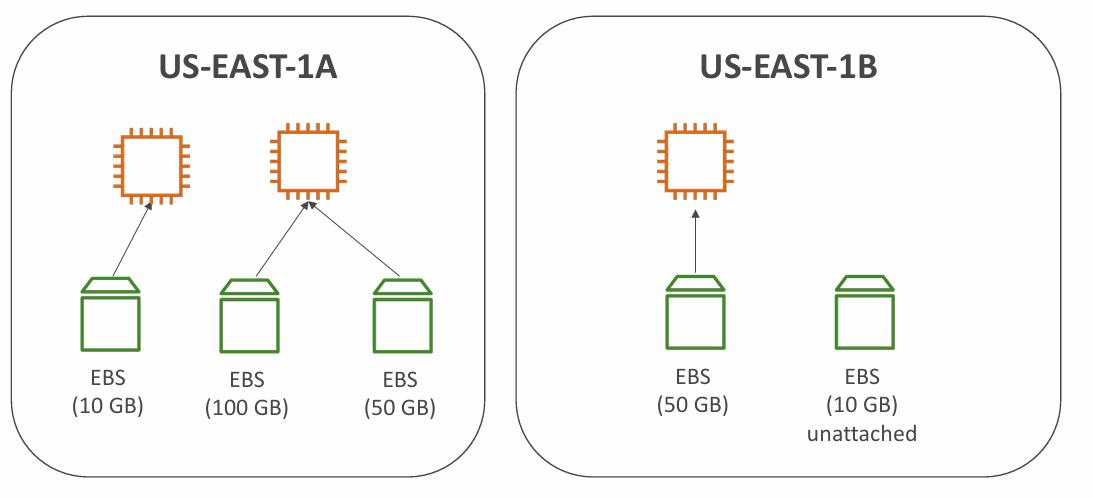

ebs-volume

Delete on Termination attribute​

  • Controls the EBS behaviour when an EC2 instance terminates
    • By default, the root EBS volume is deleted (attribute enabled)
    • By default, any other attached EBS volume is not deleted (attribute disabled)
  • This can be controlled by the AWS console / AWS CLI

EBS Snapshots​

  • Make a backup (snapshot) of your EBS volume at a point in time
  • Not necessary to detach volume to do snapshot, but recommended
  • Can copy snapshots across AZ or Region

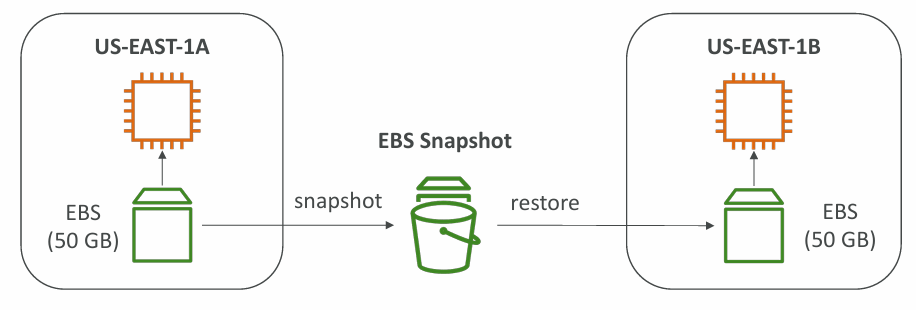

snapshot-example

EBS Snapshots Features​

  • EBS Snapshot Archive: cheaper storage but takes 24-72 hours to restore
  • Recycle Bin: Setup rules to retain deleted snapshots so you can recover them after an accidental deletion with a specified retention window (from 1 day to 1 year)
  • Fast Snapshot Restore (FSR): Force full initialization of snapshot to have no latency on the first use ($$$)

Amazon Machine Image (AMI)​

  • AMI are a customization of an EC2 instance
    • You add your own software, configuration, operating system, monitoring...
    • Faster boot / configuration time because all your software is pre-packaged
  • AMI are built for a specific region (and can be copied across regions)
  • You can launch EC2 instances from:
    • A Public AMI: AWS provided
    • Your own AMI: you make and maintain them yourself
    • An AWS Marketplace AMI: an AMI someone else made (e.g. ELK)

AMI Process (from an EC2 instance)​

  • Start an EC2 instance and customize it
  • Stop the instance (for data integrity)
  • Build an AMI – this will also create EBS snapshots
  • Launch instances from other AMIs

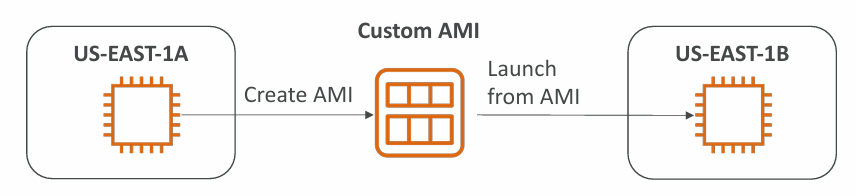

ami-workflow

EC2 Instance Store​

  • EBS volumes are network drives with good but “limited” performance
  • If you need a high-performance hardware disk, use EC2 Instance Store
    • Better I/O performance (very high IOPS)
    • EC2 Instance Store lose their storage if they’re stopped (ephemeral)
    • Good for buffer / cache / scratch data / temporary content
    • Risk of data loss if hardware fails
    • Backups and Replication are your responsibility

EBS Volume Types​

EBS Volumes are characterized in Size | Throughput | IOPS (I/O Ops Per Sec). EBS Volumes come in 6 types:

  • gp2 / gp3 (SSD): General purpose SSD volume that balances price and performance for a wide variety of workloads
  • io1 / io2 Block Express (SSD): Highest-performance SSD volume for mission-critical low-latency or high-throughput workloads
  • st1 (HDD): Low cost HDD volume designed for frequently accessed, throughput intensive workloads
  • sc1 (HDD): Lowest cost HDD volume designed for less frequently accessed workloads

Only gp2/gp3 and io1/io2 Block Express can be used as boot volumes!

EBS Volume Types Use cases​

  • General Purpose SSD
    • 1 GiB - 16 TiB
    • Cost effective storage, low-latency
    • Good for: System boot volumes, Virtual desktops, Development and test environment
    • gp3: Baseline of 3,000 IOPS and throughput of 125 MiB/s | Can increase IOPS up to 16,000 and throughput up to 1000 MiB/s independently
    • gp2: Small gp2 volumes can burst IOPS to 3,000 | Size of the volume and IOPS are linked, max IOPS is 16,000
  • Provisioned IOPS (PIOPS) SSD
    • Critical business applications with sustained IOPS performance
    • Or applications that need more than 16,000 IOPS
    • Great for databases workloads (sensitive to storage perf and consistency)
    • io1 (4 GiB - 16 TiB): Max PIOPS: 64,000 | Can increase PIOPS independently from storage size
    • io2 Block Express (4 GiB – 64 TiB): Sub-millisecond latency | Max PIOPS: 256,000
    • Supports EBS Multi-attach
  • Hard Disk Drives (HDD)
    • Cannot be a boot volume
    • 125 GiB to 16 TiB
    • st1: Throughput Optimized HDD for Big Data, Data Warehouses, Log Processing | Max throughput 500 MiB/s – max IOPS 500
    • sc1: Cold HDD for data that is infrequently accessed | Max throughput 250 MiB/s – max IOPS 250 | low cost

Volume Summary: AWS Docs

EBS Multi-Attach – io1/io2 family​

  • Attach the same EBS volume to multiple EC2 instances in the same AZ
  • Each instance has full read & write permissions to the high-performance volume
  • Use case:
    • Achieve higher application availability in clustered Linux applications (ex: Teradata)
    • Applications must manage concurrent write operations
  • Up to 16 EC2 Instances at a time (relevant for exam)
  • Must use a file system that’s cluster-aware (not XFS, EXT4, etc…)

Amazon EFS – Elastic File System​

  • Managed NFS (network file system) that can be mounted on many EC2
  • EFS works with EC2 instances in multi-AZ
  • Highly available, scalable, expensive (3x gp2), pay per use

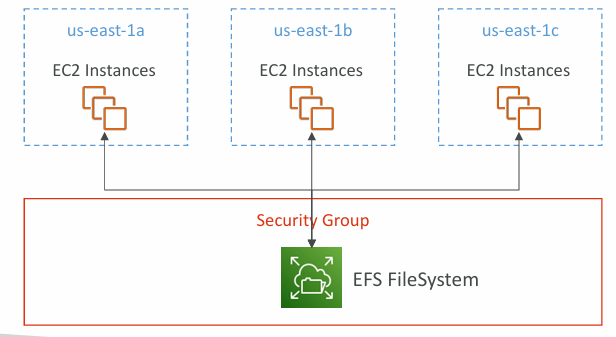

elastic-file-system

  • Use cases: content management, web serving, data sharing, Wordpress
  • Uses NFSv4.1 protocol
  • Uses security group to control access to EFS
  • Compatible with Linux based AMI (not Windows)
  • Encryption at rest using KMS
  • POSIX file system (~Linux) that has a standard file API
  • File system scales automatically, pay-per-use, no capacity planning!

EFS – Performance & Storage Classes​

  • EFS Scale
    • 1000s of concurrent NFS clients, 10 GB+ /s throughput
    • Grow to Petabyte-scale network file system, automatically
  • Performance Mode (set at EFS creation time)
    • General Purpose (default) – latency-sensitive use cases (web server, CMS, etc…)
    • Max I/O – higher latency, throughput, highly parallel (big data, media processing)
  • Throughput Mode
    • Bursting – 1 TB = 50MiB/s + burst of up to 100MiB/s
    • Provisioned – set your throughput regardless of storage size, ex: 1 GiB/s for 1 TB storage
    • Elastic – automatically scales throughput up or down based on your workloads
      • Up to 3GiB/s for reads and 1GiB/s for writes
      • Used for unpredictable workloads

EFS – Storage Classes​

  • Storage Tiers (lifecycle management feature – move file after N days):
    • Standard: for frequently accessed files
    • Infrequent access (EFS-IA): cost to retrieve files, lower price to store
    • Archive: rarely accessed data (few times each year), 50% cheaper
    • Implement lifecycle policies to move files between storage tiers
  • Availability and durability
    • Standard: Multi-AZ, great for prod
    • One Zone: One AZ, great for dev, backup enabled by default, compatible with IA (EFS One Zone-IA)
  • Over 90% in cost savings

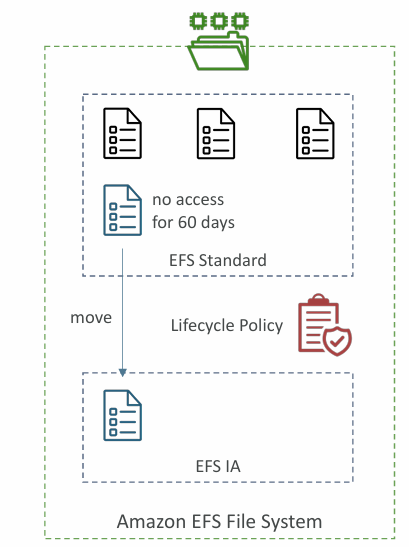

efs-storage

EBS vs EFS – Elastic Block Storage​

EBS​

  • EBS volumes
    • one instance (except multi-attach io1/io2)
    • are locked at the Availability Zone (AZ) level
    • gp2: IO increases if the disk size increases
    • gp3 & io1: can increase IO independently
  • To migrate an EBS volume across AZ
    • Take a snapshot
    • Restore the snapshot to another AZ
    • EBS backups use IO and you shouldn’t run them while your application is handling a lot of traffic
  • Root EBS Volumes of instances get terminated by default if the EC2 instance gets terminated

EFS​

  • Mounting 100s of instances across AZ
  • EFS share website files (WordPress)
  • Only for Linux Instances (POSIX)
  • EFS has a higher price point than EBS
  • Can leverage Storage Tiers for cost savings
  • Remember: EFS vs EBS vs Instance Store

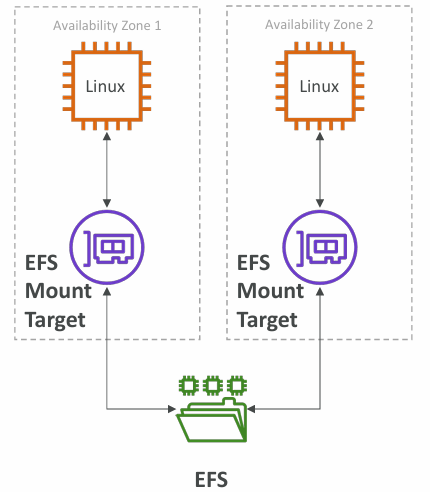

ebs-vs-efs
