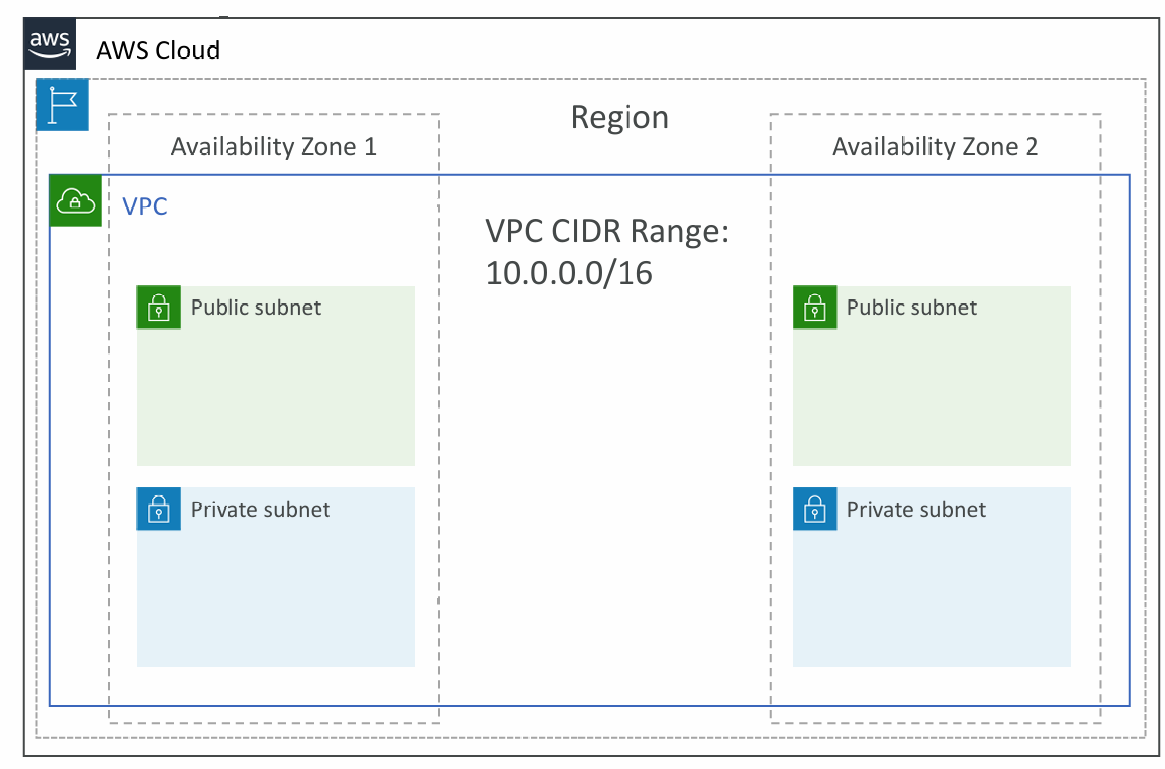

Virtual Private Cloud (VPC)

• VPC: private network to deploy your resources (regional resource)
• Subnets: allow you to partition your network inside your VPC (Availability Zone resource)
• A public subnet is a subnet that is accessible from the internet
• A private subnet is a subnet that is not accessible from the internet
• To define access to the internet and between subnets, we use Route Tables

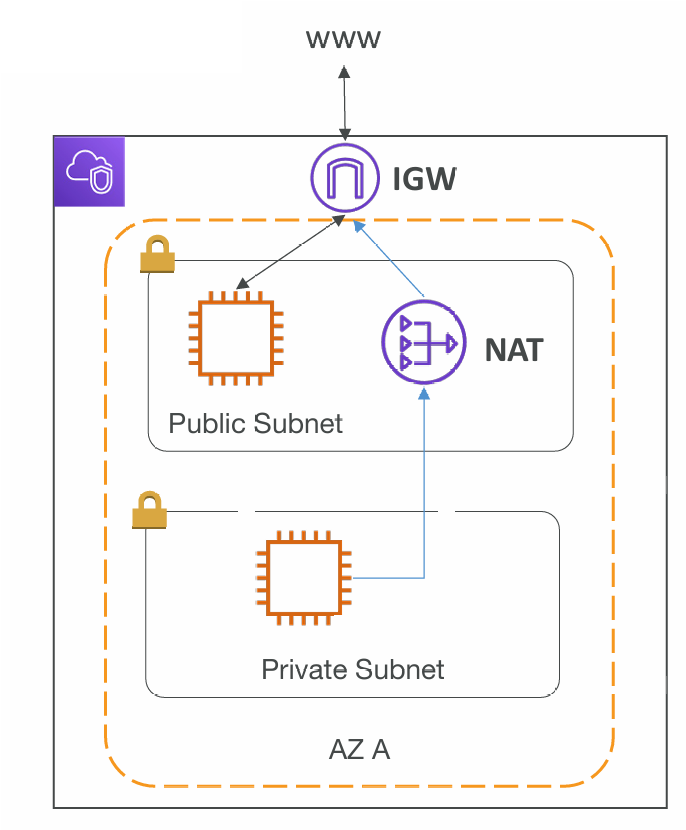

Internet Gateway & NAT Gateways

• Internet Gateways helps our VPC instances connect with the internet
• Public Subnets have a route to the internet gateway
• NAT Gateways (AWS-managed) & NAT Instances (self-managed) allow your instances in your Private Subnets to access the internet while remaining private

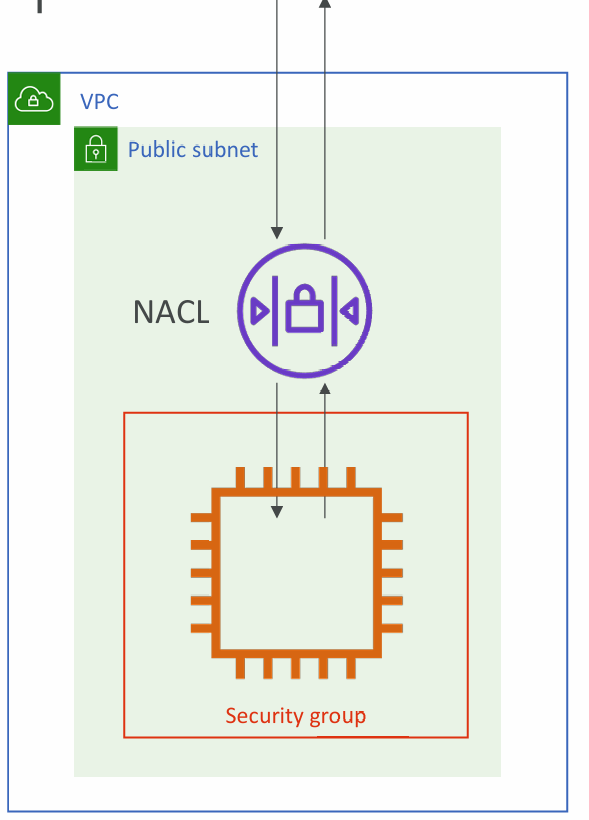

Network ACL & Security Groups

• NACL (Network ACL)
  • A firewall which controls traffic from and to subnet
  • Can have ALLOW and DENY rules
  • Are attached at the Subnet level
  • Rules only include IP addresses
• Security Groups
  • A firewall that controls traffic to and from an ENI / an EC2 Instance
  • Can have only ALLOW rules
  • Rules include IP addresses and other security groups

Network ACLs vs Security Groups

VPC Flow Logs

• Capture information about IP traffic going into your interfaces:
  • VPC Flow Logs
  • Subnet Flow Logs
  • Elastic Network Interface Flow Logs
• Helps to monitor & troubleshoot connectivity issues. Example:
  • Subnets to internet
  • Subnets to subnets
  • Internet to subnets
• Captures network information from AWS managed interfaces too: Elastic Load Balancers, ElastiCache, RDS, Aurora, etc…
• VPC Flow logs data can go to S3, CloudWatch Logs, and Kinesis Data Firehose

VPC Peering

• Connect two VPC, privately using AWS’ network
• Make them behave as if they were in the same network
• Must not have overlapping CIDR (IP address range)
• VPC Peering connection is not transitive (must be established for each VPC that need to communicate with one another)

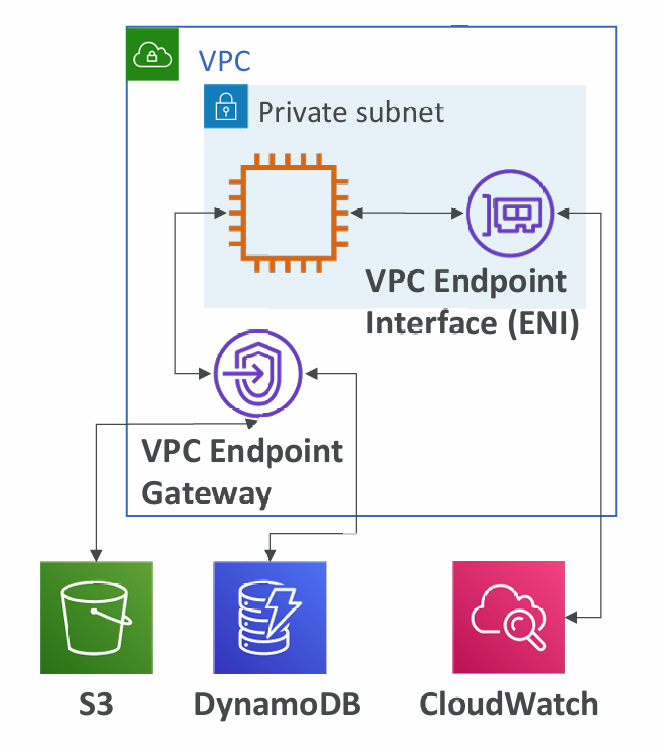

VPC Endpoints

• Endpoints allow you to connect to AWS Services using a private network instead of the public www network
• This gives you enhanced security and lower latency to access AWS services
• VPC Endpoint Gateway: S3 & DynamoDB
• VPC Endpoint Interface: the rest
• Only used within your VPC

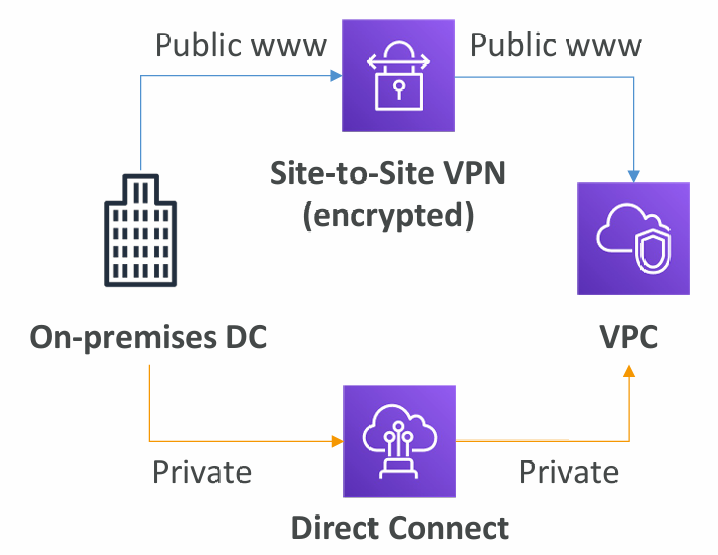

Site to Site VPN & Direct Connect

• Site to Site VPN
  • Connect an on-premises VPN to AWS
  • The connection is automatically encrypted
  • Goes over the public internet
• Direct Connect (DX)
  • Establish a physical connection between on premises and AWS
  • The connection is private, secure and fast
  • Goes over a private network
  • Takes at least a month to establish

Summary

• VPC: Virtual Private Cloud
• Subnets: Tied to an AZ, network partition of the VPC
• Internet Gateway: at the VPC level, provide Internet Access
• NAT Gateway / Instances: give internet access to private subnets
• NACL: Stateless, subnet rules for inbound and outbound
• Security Groups: Stateful, operate at the EC2 instance level or ENI
• VPC Peering: Connect two VPC with non overlapping IP ranges, non transitive
• VPC Endpoints: Provide private access to AWS Services within VPC
• VPC Flow Logs: network traffic logs
• Site to Site VPN: VPN over public internet between on-premises DC and AWS
• Direct Connect: direct private connection to a AWS
